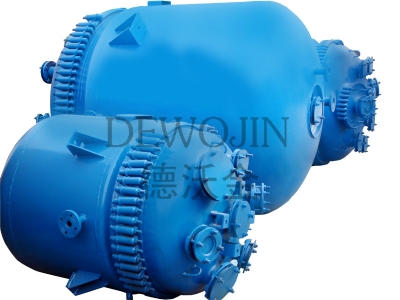

High Quality Enamelled Distillation Unit
  • High Quality Enamelled Distillation Unit

High Quality Enamelled Distillation Unit


                                                        High Quality Enamelled Distillation Unit
        Our company's high quality enamelled distillation unit  is produced by making high content silica into high-quality corrosion-resistant enamel glaze, and spray the glaze on the surface of the metal matrix. The glaze will be closely adherent to the surface of the metal after a high-temperature firing of 950℃. Therefore, possessing the dual nature that combines the corrosion resistance of glass and the strength of metal, it is good corrosion resistant equipment. Now, it has been widely applied in industries and departments, such as petroleum, chemicals, light industries, medicines, agriculture, pharmaceuticals, foods, fuels, and scientific research.
        Corrosion resistance of high quality enamelled distillation unit: it is resistant to the corrosions of inorganic acids, organic acids, organic solvents and weak alkalis in all concentrations (except for hydrofluoric acids, media that contain fluoride ion, and concentrated phosphoric acids and strong alkalis with a concentration ≥30% and a temperature ≥180℃).


                                                                 MetInfo enterprise content manager system | MetInfo CMS

                                                                                  Standard: HG/T3126-1998

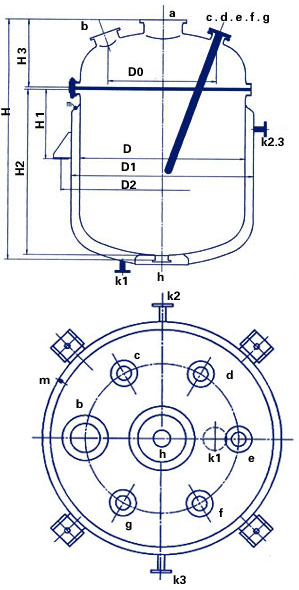

                                            Overall Dimensions and Nozzle Sizes of High Quality Enamelled Distillation Unit

Nominal volume L

Actual volume L

Heat exchange area of jacket (m2)

Sizes (mm)

Nozzle sizes (mm)

Approx
Weight
Kg

D

D 0

D 1

D 2

H

H1

H 2

H3

a

b

c

dg

ef

h


1-3

m

K300

369

1.75

800

560

900

1048

1280

350

870

390

150

125

70

80

80

80

3-25

1/2 ″

568

K500

588

2.27

900

630

1000

1130

1504

400

1070

415

200

150

80

100

80

80

3-32

1/2 ″

778

K1000

1250

4.54

1200

840

1300

1488

1810

500

1270

510

300

200

80

100

80

100

3-32

1/2 ″

1439

K1500

1720

5

1300

910

1450

1622

2035

500

1470

535

300

200

80

100

80

100

3-40

1/2 ″

1908

K2000

2280

6.42

1600

1120

1750

1962

1988

600

1330

630

400

200

100

125

100

125

3-40

1/2 ″

2510

K3000

3380

8.67

1600

1120

1750

1962

2475

600

1810

630

400

200

100

125

100

125

3-40

1/2 ″

3196



                                          Main Technical Performance of High Quality Enamelled Distillation Unit

Enamelled Distillation Unit



Max. Operation Pressure (Mpa)

Operation Temperature (°C)

enamel lining Thickness (mm)

High Voltage Test to enamel layer (kv)

Inner of Vessel

Inner of Jacket

Inner of Vessel

Inner of Jacket

0.25

0.6

0~200

0~200

0.8~2.0

20 (Retest of User: 6)

Remarks:Temperature difference operation limit for enamel lining:cooling shock:110°C,thermo shock:120°C. (This is Destructive Test).
